H3C实现IPSec over GRE典型配置
IPSec over GRE 指使用GRE对使用IPSec封装的数据包进行封装，IPSec over GRE在隧道接口上实现IPSec加密。系统检测隧道接口上需要加密的数据流（配置一个ACL来匹配两个用户网段之间的数据流）。匹配ACL的任何数据包都会被封装成IPSec数据包，然后在通过隧道传输之前封装成GRE数据包。与ACL不匹配的数据包会直接在GRE隧道中传输，而不会使用IPSec进行封装，这意味着这些数据包的传输方式并不安全。此外，GRE隧道在设置时不受IPSec保护。
你可以认为IPSec over GRE的安全性是不全面的，因为它只会加密被ACL所匹配的流量，隧道的建立过程没有加密，没被匹配到的流量不会被加密。
0.实验环境
Router A和Router B之间建立GRE隧道，Router A和Router B下的PC网段间流量走GRE，并使用IPSec对在GRE中对流量进行加密，Route C则模拟在ISP侧的设备。
模拟器：H3C官方模拟器HCL，即H3C Cloud Lab
设备：H3C MSR36-20 Version 7.1.075, Alpha 7571
拓扑图：
1.基础配置
A和B之间使用静态路由使出口路由可达，并且先起个OSPF进程，使用环回口作为Router-id，因为最后它们要在tunnel上实现OSPF的互联。
Route A：
#
ospf 1 router-id 100.1.1.1
area 0.0.0.0
#
interface LoopBack0
ip address 100.1.1.1 255.255.255.0
ospf 1 area 0.0.0.0
#
interface GigabitEthernet0/0
port link-mode route
ip address 10.1.1.2 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
ip address 192.168.1.1 255.255.255.0
ospf 1 area 0.0.0.0
#
ip route-static 0.0.0.0 0 10.1.1.1
#
Route C：
#
interface GigabitEthernet0/0
port link-mode route
ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
ip address 20.1.1.1 255.255.255.0
#
Route B：
#
ospf 1 router-id 200.1.1.1
area 0.0.0.0
#
interface LoopBack0
ip address 200.1.1.1 255.255.255.0
ospf 1 area 0.0.0.0
#
interface GigabitEthernet0/0
port link-mode route
ip address 20.1.1.2 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
ip address 192.168.2.1 255.255.255.0
ospf 1 area 0.0.0.0
#
ip route-static 0.0.0.0 0 20.1.1.1
#
2.GRE tunnel 配置
模拟器默认设备系统版本都是V7，需要在创建Tunnel的时候就指定为GRE隧道。Tunnel要将源设定为自己的出口IP，目的是对端的设备的出口IP，以A为视角的话，Tunnel source 就是它的出口IP，destination是B的出口IP，反过来也是这样。顺便将OSPF网络设定成P2P模式，方便快速建立邻居。
Route A：
interface Tunnel0 mode gre
ip address 172.16.1.1 255.255.255.0
ospf network-type p2p
ospf 1 area 0.0.0.0
source 10.1.1.2
destination 20.1.1.2
Route B：
interface Tunnel0 mode gre
ip address 172.16.1.2 255.255.255.0
ospf network-type p2p
ospf 1 area 0.0.0.0
source 20.1.1.2
destination 10.1.1.2
3.IPSec 配置
两台设备都需要创建ACL抓取需要加密的流量，不然不会触发IPSec加密行为。同时需要注意transform-set的加密和认真参数需要一支， V7设备预共享密钥的配置需要在ike keychain中配置，不同于V5设备。建议在实际生产环境中操作的时候最好直接使用复制粘贴来配置IPSec policy。
Route A：
acl advanced 3000
rule 0 permit ip source 192.168.1.0 0.0.0.255 destination 192.168.2.0 0.0.0.255
rule 5 permit ip source 192.168.2.0 0.0.0.255 destination 192.168.1.0 0.0.0.255
#
ipsec transform-set 123
esp encryption-algorithm 3des-cbc
esp authentication-algorithm md5
#
ipsec policy 123 1 isakmp
transform-set 123
security acl 3000
remote-address 172.16.1.2
#
ike keychain 1
pre-shared-key address 172.16.1.2 255.255.255.255 key simply 123
Route B：
acl advanced 3000
rule 0 permit ip source 192.168.1.0 0.0.0.255 destination 192.168.2.0 0.0.0.255
rule 5 permit ip source 192.168.2.0 0.0.0.255 destination 192.168.1.0 0.0.0.255
#
ipsec transform-set 123
esp encryption-algorithm 3des-cbc
esp authentication-algorithm md5
#
ipsec policy 123 1 isakmp
transform-set 123
security acl 3000
remote-address 172.16.1.1
#
ike keychain 1
pre-shared-key address 172.16.1.1 255.255.255.255 key simply 123
4.启用IPSec
最后，我们只要在tunnel口下把在第三步创建的IPSec policy 调用出来就可以了。
Route A/B：
interface Tunnel0 mode gre
ipsec apply policy 123
5.验证结果

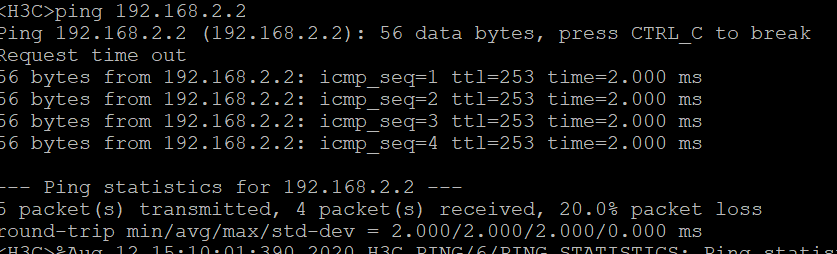

我们直接ping下，会发现IPSec第一个包都会超时，这是正常的，只要通了那就代表配置没错了。
由于Router A和Router B内网的流量已在ACL中定义为需加密保护的流量，因此将触发IPsec进行加密。可以通过如下显示信息看到，IKE协商成功，生成了SA。
<H3C>display ike sa
Connection-ID Remote Flag DOI
------------------------------------------------------------------
1 172.16.1.1 RD IPsec
Flags:
RD--READY RL--REPLACED FD-FADING RK-REKEY
可以通过如下显示信息查看协商生成的IPsec SA。
<H3C>display ipsec sa
-------------------------------
Interface: Tunnel0
-------------------------------
-----------------------------
IPsec policy: 123
Sequence number: 1
Mode: ISAKMP
-----------------------------
Tunnel id: 0
Encapsulation mode: tunnel
Perfect Forward Secrecy:
Inside VPN:
Extended Sequence Numbers enable: N
Traffic Flow Confidentiality enable: N
Path MTU: 1420
Tunnel:
local address: 172.16.1.2
remote address: 172.16.1.1
Flow:
sour addr: 192.168.2.0/255.255.255.0 port: 0 protocol: ip
dest addr: 192.168.1.0/255.255.255.0 port: 0 protocol: ip
[Inbound ESP SAs]
SPI: 1503174692 (0x5998a024)
Connection ID: 30064771075
Transform set: ESP-ENCRYPT-3DES-CBC ESP-AUTH-MD5
SA duration (kilobytes/sec): 1843200/3600
SA remaining duration (kilobytes/sec): 1843199/3316
Max received sequence-number: 4
Anti-replay check enable: Y
Anti-replay window size: 64
UDP encapsulation used for NAT traversal: N
Status: Active
[Outbound ESP SAs]
SPI: 3411111458 (0xcb516e22)
Connection ID: 30064771074
Transform set: ESP-ENCRYPT-3DES-CBC ESP-AUTH-MD5
SA duration (kilobytes/sec): 1843200/3600
SA remaining duration (kilobytes/sec): 1843199/3316
Max sent sequence-number: 4
UDP encapsulation used for NAT traversal: N
Status: Active
可以通过如下显示信息查看GRE隧道的建立情况。
[H3C]display interface tunnel0
Tunnel0
Current state: UP
Line protocol state: UP
Description: Tunnel0 Interface
Bandwidth: 64 kbps
Maximum transmission unit: 1476
Internet address: 172.16.1.2/24 (primary)
Tunnel source 20.1.1.2, destination 10.1.1.2
Tunnel keepalive disabled
Tunnel TTL 255
Tunnel protocol/transport GRE/IP
GRE key disabled
Checksumming of GRE packets disabled
Output queue - Urgent queuing: Size/Length/Discards 0/100/0
Output queue - Protocol queuing: Size/Length/Discards 0/500/0
Output queue - FIFO queuing: Size/Length/Discards 0/75/0
Last clearing of counters: Never
Last 300 seconds input rate: 18 bytes/sec, 144 bits/sec, 0 packets/sec
Last 300 seconds output rate: 18 bytes/sec, 144 bits/sec, 0 packets/sec
Input: 1711 packets, 122752 bytes, 0 drops
Output: 1699 packets, 120360 bytes, 0 drops
GRE封装后，依然能抓包软件识别出是ICMP报文：
GRE+IPSec封装后，由于被加密，被识别成ESP。：
6.改用GRE over IPSec方案
GRE over IPSec技术是使用IPSec对已经被GRE封装的数据包进行封装。GRE over IPSec在物理接口上实现IPSec加密。系统检测需要在物理接口上加密的GRE数据流（配置一个ACL，以匹配两个网关之间的GRE数据流）。这样一来，所有通过GRE隧道传输的数据流都受到IPSec的保护。GRE隧道在设置时也受到IPSec的保护。
GRE over IPSec支持隧道和传输模式下的封装。在隧道模式下，IPSec数据包头被插入到数据包中。因此，数据包的长度较长，而且往往会被碎片化。建议使用传输模式来防止不必要的碎片。
也就是说，只需要在原本的方案上稍微修改下pre-shared-key和remote-address的地址为物理接口IP，并且在物理接口上调用，那就变成GRE先封装，IPSec后封装的方案。
6.1配置修改
Route A：
acl advanced 3000
rule 0 permit ip source 10.1.1.2 32 destination 20.1.1.2 32
#
ipsec transform-set 123
esp encryption-algorithm 3des-cbc
esp authentication-algorithm md5
#
ipsec policy 123 1 isakmp
transform-set 123
security acl 3000
remote-address 20.1.1.2
#
ike keychain 1
pre-shared-key address 20.1.1.2 255.255.255.255 key simply 123
#
interface GigabitEthernet0/0
ipsec apply policy 123
Route B：
acl advanced 3000
rule 0 permit ip source 20.1.1.2 32 destination 10.1.1.2 32
#
ipsec transform-set 123
esp encryption-algorithm 3des-cbc
esp authentication-algorithm md5
#
ipsec policy 123 1 isakmp
transform-set 123
security acl 3000
remote-address 20.1.1.2
#
ike keychain 1
pre-shared-key address 20.1.1.2 255.255.255.255 key simply 123
#
interface GigabitEthernet0/0
ipsec apply policy 123
6.2 验证结果
[H3C]dis ike sa
Connection-ID Remote Flag DOI
------------------------------------------------------------------
10 20.1.1.2 RD IPsec
Flags:
RD--READY RL--REPLACED FD-FADING RK-REKEY
[H3C]dis ipsec sa
-------------------------------
Interface: GigabitEthernet0/0
-------------------------------
-----------------------------
IPsec policy: 123
Sequence number: 1
Mode: ISAKMP
-----------------------------
Tunnel id: 0
Encapsulation mode: tunnel
Perfect Forward Secrecy:
Inside VPN:
Extended Sequence Numbers enable: N
Traffic Flow Confidentiality enable: N
Path MTU: 1444
Tunnel:
local address: 10.1.1.2
remote address: 20.1.1.2
Flow:
sour addr: 10.1.1.2/255.255.255.255 port: 0 protocol: ip
dest addr: 20.1.1.2/255.255.255.255 port: 0 protocol: ip
[Inbound ESP SAs]
SPI: 3221028236 (0xbffcfd8c)
Connection ID: 98784247808
Transform set: ESP-ENCRYPT-3DES-CBC ESP-AUTH-MD5
SA duration (kilobytes/sec): 1843200/3600
SA remaining duration (kilobytes/sec): 1843199/3419
Max received sequence-number: 9
Anti-replay check enable: Y
Anti-replay window size: 64
UDP encapsulation used for NAT traversal: N
Status: Active
[Outbound ESP SAs]
SPI: 3175456113 (0xbd459d71)
Connection ID: 193273528321
Transform set: ESP-ENCRYPT-3DES-CBC ESP-AUTH-MD5
SA duration (kilobytes/sec): 1843200/3600
SA remaining duration (kilobytes/sec): 1843198/3419
Max sent sequence-number: 10
UDP encapsulation used for NAT traversal: N
Status: Active
-----------------------------
IPsec policy: 123
Sequence number: 1
Mode: ISAKMP
-----------------------------
Tunnel id: 0
Encapsulation mode: tunnel
Perfect Forward Secrecy:
Inside VPN:
Extended Sequence Numbers enable: N
Traffic Flow Confidentiality enable: N
Path MTU: 1444
Tunnel:
local address: 10.1.1.2
remote address: 20.1.1.2
Flow:
sour addr: 10.1.1.2/255.255.255.255 port: 0 protocol: ip
dest addr: 20.1.1.2/255.255.255.255 port: 0 protocol: ip
[Inbound ESP SAs]
SPI: 2902764455 (0xad04aba7)
Connection ID: 12884901891
Transform set: ESP-ENCRYPT-3DES-CBC ESP-AUTH-MD5
SA duration (kilobytes/sec): 1843200/3600
SA remaining duration (kilobytes/sec): 1843197/3469
Max received sequence-number: 28
Anti-replay check enable: Y
Anti-replay window size: 64
UDP encapsulation used for NAT traversal: N
Status: Active
[Outbound ESP SAs]
SPI: 2962522711 (0xb0948257)
Connection ID: 12884901890
Transform set: ESP-ENCRYPT-3DES-CBC ESP-AUTH-MD5
SA duration (kilobytes/sec): 1843200/3600
SA remaining duration (kilobytes/sec): 1843196/3469
Max sent sequence-number: 30
UDP encapsulation used for NAT traversal: N
Status: Active
IPSec+GRE的封装后，抓包除了能看出源目IP和使用了ESP加密外，什么也看不到：
